The ULS 100 Benchtop Dot Peen System (Stepper) is a compact and reliable industrial marking machine designed for customers who require high accuracy, flexibility and efficient marking performance. Its benchtop design makes it easy to install and operate for a wide range of industrial applications.
High-Accuracy Marking
The ULS 100 provides precise dot peen marking with an adjustable marking depth of 0.1–0.2 mm, depending on the workpiece material. It is suitable for marking workpieces with hardness up to HRC 60 and supports marking of letters, numbers and other identification details.
Versatile Marking

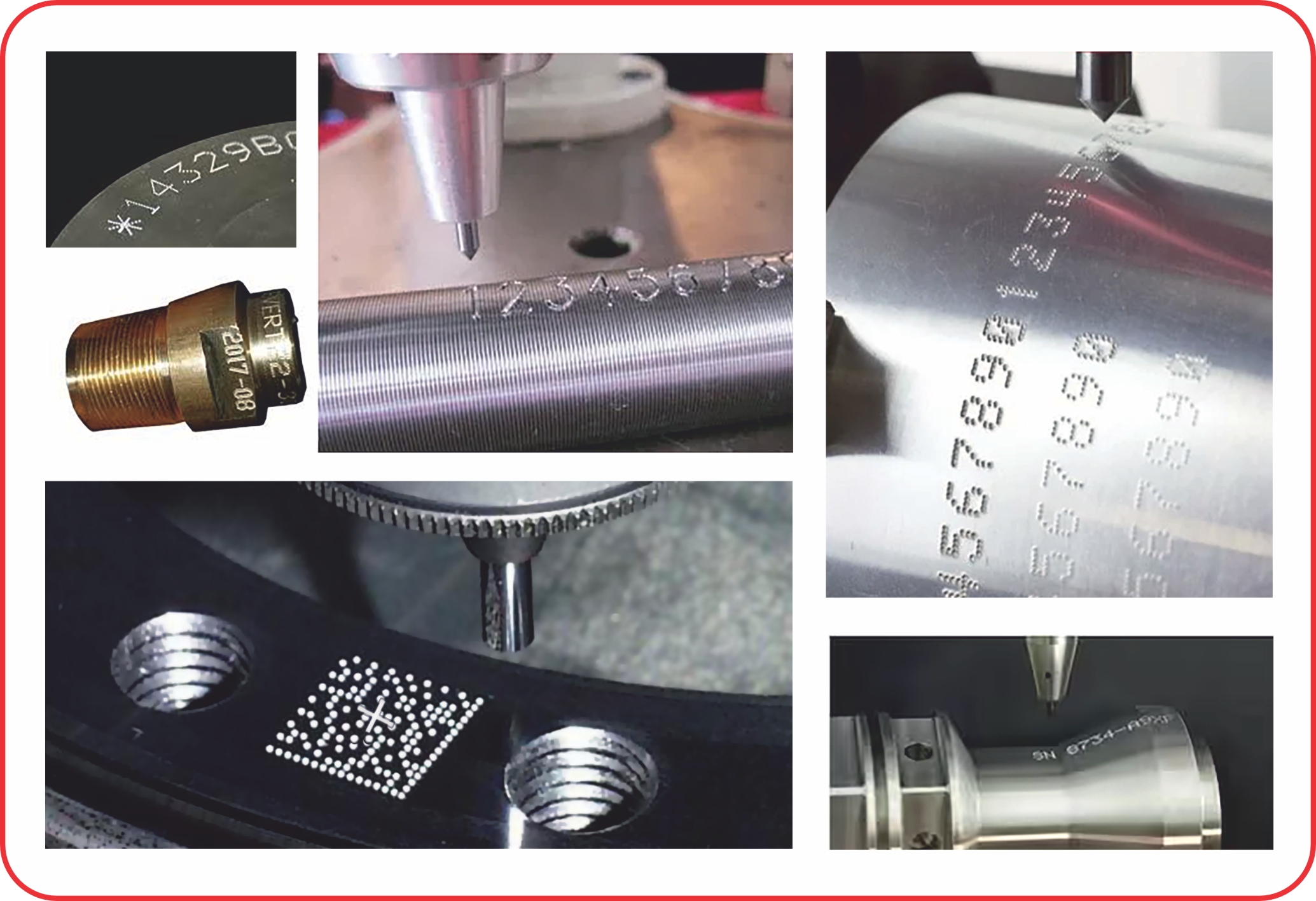

The system can mark all kinds of characters, serial numbers, VIN codes, graphics, anti-counterfeiting marks, 2D codes and QR codes. With a marking range of 140 × 80 mm, it is suitable for a wide variety of industrial components and applications.
Flexible Installation
The compact size of the ULS 100 makes it easy to install and configure in different working environments. It supports four-direction marking as well as marking on tube surfaces and sector-shaped surfaces, providing greater adaptability for different workpieces.
Fast Marking Performance
With an impacting frequency of more than 200 Hz, the system delivers fast and consistent marking performance, making it suitable for high-volume industrial marking requirements.
Stepper motor-driven dot peen marking system with an integrated English-interface marking controller.
Supports multiple fonts, serial numbers, VIN codes, graphics, anti-counterfeiting marks, 2D codes and QR codes.
Marking Area : 140 mm x 80 mm
Marking Depth : 0.1–0.2 mm adjustable
Workpiece Hardness : Up to HRC 60
Impacting Frequency : > 200 Hz
Marking Direction : Four directions, tube surface and sector
With an impacting frequency of more than 200 Hz, the ULS 100 delivers fast and efficient marking performance for industrial applications.
Its 140 × 80 mm marking area supports a variety of workpieces, while four-direction marking enables flexible positioning.
The system can also mark tube surfaces and sector-shaped surfaces.
The ULS 100 features an integrated marking controller with an English interface, making operation simple and convenient.
Its software supports multiple fonts, graphic editing, positioning, graphic transformation, digital retrieval and automatic saving of marking data.
The compact benchtop design allows easy installation and makes the system ideal for customers requiring high accuracy and flexible marking.
