MICRO-PERCUSSION MARKING SOLUTION - STAND ALONE MACHINE

Available in 2 versions:

- pneumatic

- electro-magnetic

SIMPLE

Unpack and plug your XF500: it's ready to mark! All-in-one: keyboard included, software integrated, you have all the traceability functions you need (Text, counters, dates, serial numbers, Data MatrixT codes, logos etc.). Autonomous (no computer needed) and no consumables either: now you're cutting costs!.

INNOVATIVE

Easily create your marking files: wide screen, icons, graphic preview. Use your USB drive and import/export logos (.plt) and files.

VERSATILE

Adapt it to all your needs: Wide range of accessories available.

PRODUCT HIGHLIGHTS

XF500Zm - A new Stand-Alone machine with an automatic height adjustment

You are after a cost effective solution to maximise your productivity and ensure a consistent top marking quality?This All-in One machine operates without the need of a computer.This innovative solution includes a high precision automatic Z-axis and a new electromagnetic stylus with touch sensor..

ADVANTAGES & INNOVATION

- Easy and Quick setup of the marking height

- Consistent marking quality across batches

- Safe operator environment

- Optimum height per marking file stored in the memory

- Reliable and Flexible station for all your permanent marking needs.

APPLICATIONS & MARKETS

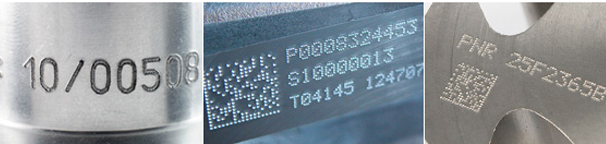

You can mark: Logos, Serial Number, Text, ... Whatever you want

Mechanics, Metal working

- Automotive part manufacturing.

- Steel industry

- Space & Aeronautics

- Oil & Gas

- Nameplates and tags

- Keys & locks

- Bicycles and Motorcycles manufacturing

- Agricultural & Heavy equipment

- Rubber, Plastics mfg

TECHNICAL INFORMATION

The high amplitude stylus of the XF510m range enables marking parts of any shape and material : raw, machined, flat, convex, concave...

Energy: Electromagnetic.

- Marking area: 100 x 120

- Z axis: 280 mm

- Character size: From 0.5 to 99.5 mm

- Marking speed: 5 characters/second

Motorized adjustement - High precision marking - Data Matrix™ reading

ALL-IN-ONE SOLUTION:


- Stand-alone marking machine

- Marking windows: 100x120 mm

- Motorized Z axis: up to 280 mm

Handheld reader

Data Matrix™ code reading

EFFICIENT

Marks permanently serial numbers, references, logos, DataMatrixT codes Tracks the part throughout its entire life.

PREMIUM

3 motorized axes ensure precise positioning of the marked dots. Autosensing of the surface for high quality marking result.

INTERACTIVE

Extensive connectivity with multiple data entry (bar code, USB, database merging.) Marking & Reading data saving in historic files.

VERSATILE

Marks any part shape without stressing the material (titanium, steel, aluminium, cast-iron, plastics, etc.)Easy and immediate reading of codes.

USERS BENEFITS

- Global offer: marking + reading .

- Answer to your customer tracking specs

- Opening new markets

-Optimized production

- Shipbuilding

Micro-percussion marking - Guaranteed individual tracking for medical devices

SIMPLE & USER-FRIENDLY

Universal clamping: allows instruments of all shapes to be marked (cups, needle holders, scissors, chisels etc.)Sighting diode: preview of the marking on the instrument Ergonomic workstation Integrated marking programme: no need for a PC Option: table

PERFORMANCE & RELIABILITY

Direct and individual instrument marking: no risk of detached stickers, no inconvenience for the surgeon, no interference between instruments A marking technique which is simple to deploy and conducive to autonomy in order to minimise the time instruments are out of service.

ADVANTAGE OF THE DATA MATRIX™CODE

Guarantees traceability of instrument use vis-à-vis the patient Facilitates re-composition to match instrument boxes Offers reliable monitoring of all equipment Simplifies stock management .

TECHNICAL INFORMATION

The high amplitude stylus of the XF510m range enables marking parts of any shape and material : raw, machined, flat, convex, concave...

BENEFITS FOR USERS

- Reduced operating costs

- Simple and intuitive use

- Just one machine for all existing instruments: from the smallest and most fragile to the most robust and
